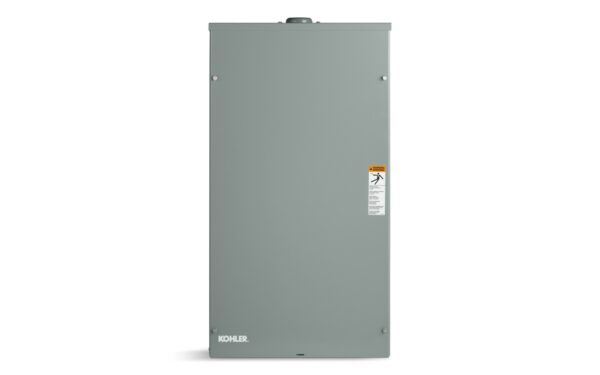

RDT ATS – 200-amp, Service Entrance


* Automatically transfers power to your generator during an outage Features

Product Details


Compatible with all KOHLER generators.

User-friendly LED display indicates performance status.

Ideal for adding generator to buildings with previously installed electrical.

Options available to install indoors or outdoors.

Available in service entrance models.

Provides quiet weekly exercise with complete system diagnostics.

RDT ATS – 200-amp, Service Entrance Specifications

Accessory board with audible alarm, input and output connections, 2-week exercise option, and 10 minute load control delay option Optional
All-in-one main distribution panel and ATS No
Certifications/Listings UL Listed
Common / fault relay Yes
Controller MPAC 500
Country of Origin US
Enclosure Material Aluminum
Enclosure Type Indoor or Outdoor
External alarm module available for remote status indication and remote generator set start/stop Optional
Frequency 60 Hz
Generator Compatibility All Single Phase KOHLER Residential/Small Business Generators
Load Center w/o Load Center
Load Control Time Delay Yes
Load Shedding N/A
Phase Single Phase
Position Indicating LEDs Yes
Source Available Indicating LEDs Yes
Transfer Switch Type Service Entrance
Voltage @ 60 Hz 240
Warranty 5-year limited
Weight 26 lbs. (12 kg)
Wires 3
